Introduction to Intelligent Power Management

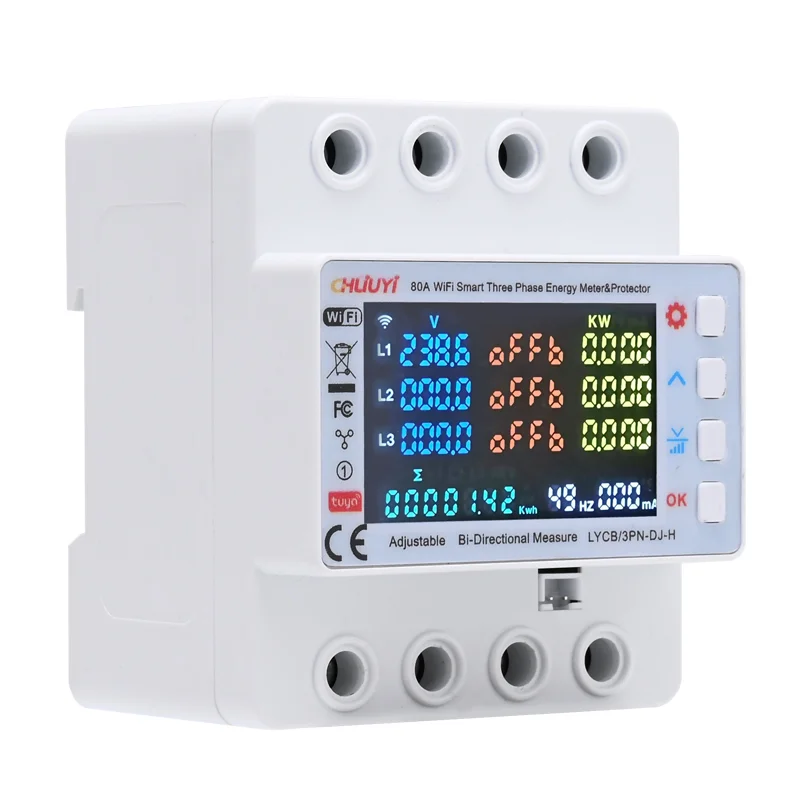

The three phase energy meter protector delivers next-generation home and industrial power management. The smart device combines an accurate electricity monitor, an adjustable electrical protector, and an intelligent remote switch. Users can easily manage single-phase loads or complete three-phase circuits using the protection unit to ensure maximum operational safety and prevent unexpected electrical damage.
Multi-Level Grid Safety Automation
The three phase energy meter protector provides comprehensive multi-level defense for electrical networks. The protection hardware automatically detects overvoltage, undervoltage, overcurrent, and undercurrent anomalies. Once electrical values cross safe thresholds, the smart unit disconnects power within 0.5 seconds to shield connected appliances.
Automatic Power Restoration Delays
The three phase energy meter protector includes adjustable recovery time delays to automate power restoration safely. Equipped with advanced wireless modules, the digital safety device connects seamlessly to smart applications. Circuit operators can track real-time voltage, current, and active power metrics globally through the wireless control panel interface.
Customized Safety Threshold Settings
The three phase energy meter protector supports flexible timer schedules, bidirectional energy monitoring for solar setups, and instant push notifications for fault occurrences. Users can configure the smart device via physical buttons or smart mobile applications. Each safety parameter on the multi-functional controller can be customized with specific action thresholds.
Independent Relay Control Architecture

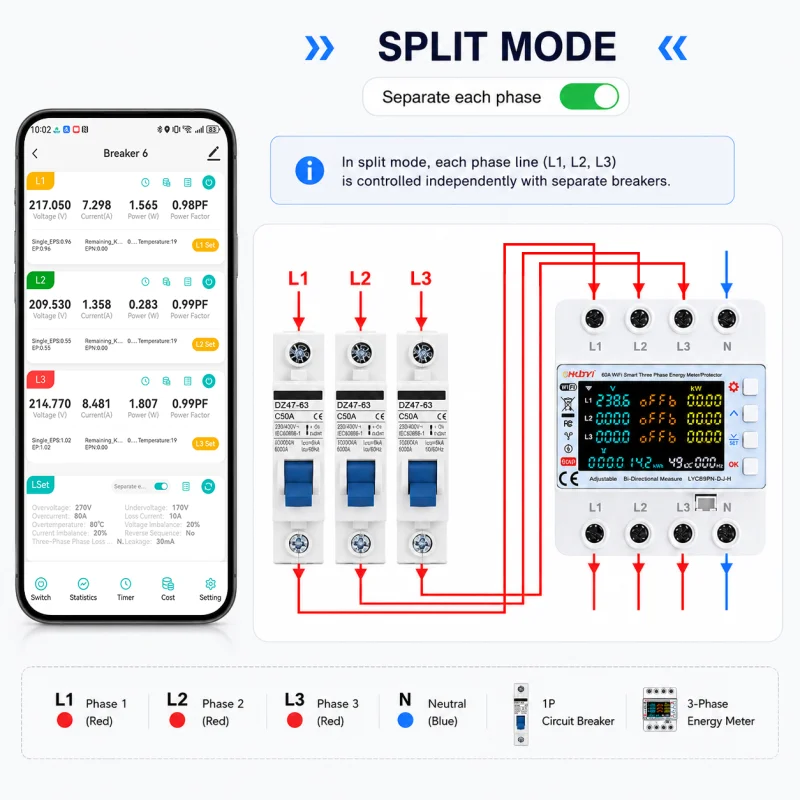

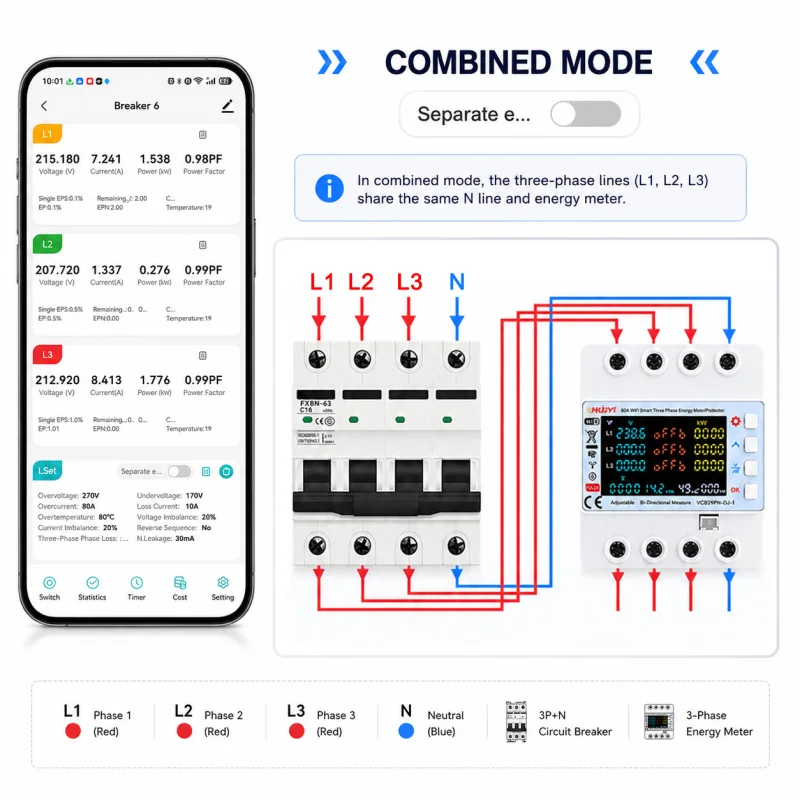

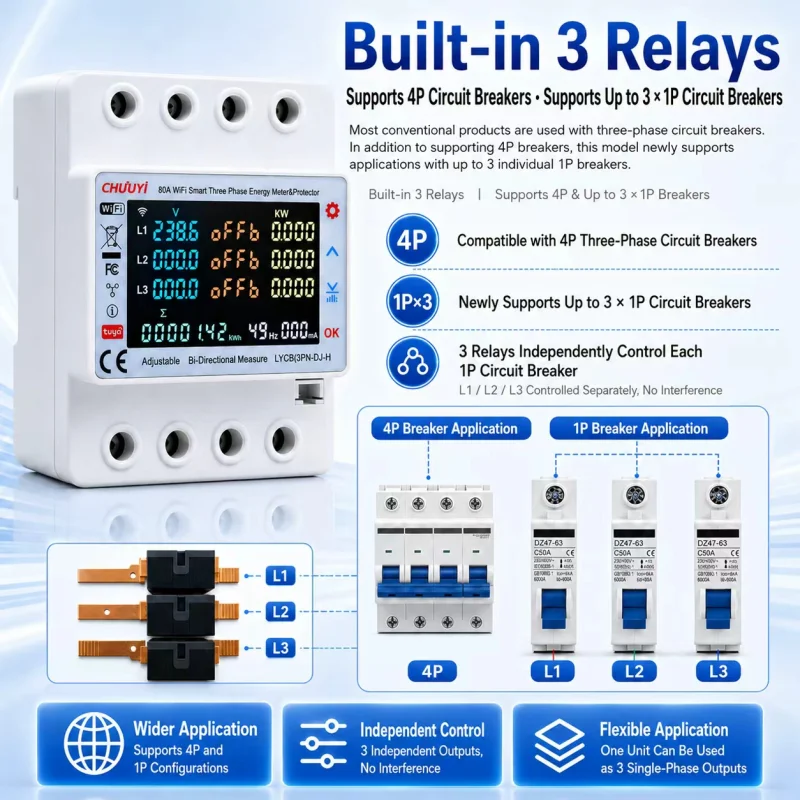

Featuring a unique 3-in-1 functionality layout, the three phase energy meter protector accommodates three distinct single-phase loads or standard four-pole three-phase systems. The built-in three relays offer independent phase control, which is illustrated clearly in fc04f87059b50d7c7245d5c5e7fcf2f6.png. Such relay architecture makes the smart system highly versatile.
Heavy-Duty Industrial Specifications
Engineered for reliable performance under demanding conditions, the three phase energy meter protector supports high-capacity wiring up to 35mm² insulated copper wire. The industrial hardware operates efficiently within a wide temperature range from -30°C to 70°C. Exact body dimensions can be referenced directly in the new three phase OUP.pdf manual.
Comprehensive Phase and Temperature Verification
Comprehensive safety mechanisms built into the three phase energy meter protector include current leakage protection and voltage imbalance monitoring. The smart device prevents electrical hazards through phase sequence verification and built-in high-temperature alarms. Grid operators trust the protection system for continuous industrial power optimization.
Standardized DIN Rail Installation
The three phase energy meter protector features a standard 35mm DIN rail mounting design for quick installation. Although the electrical unit offers automated safety, a standard short-circuit breaker must be installed at the front end of the power line. Circuit operators must manually disconnect the upstream circuit breaker before performing any electrical maintenance.
[Internal Link: Click here to view our compatible DIN Rail Short-Circuit Breakers Collection]
Smart Application Pairing Process
To connect the three phase energy meter protector to the network, download the official application. Long-press the wireless pairing button on the three phase energy meter protector for 5 seconds until the indicator flashes. The rapid flashing state shows the three phase energy meter protector is ready to pair. Select the correct switch module within the application to complete configuration.
[External Link: Visit the official Google Play Store to download the Tuya APP or Smart Life App]
Real-Time Network Status Diagnostics
The light emitting diode indicator on the three phase energy meter protector provides real-time network status updates. A fast flashing light indicates the communication module is actively searching for a wireless signal. A slow flashing light means the smart controller is offline. A solid light confirms the protection system is successfully connected.
Advanced Bidirectional Monitoring for Solar Systems

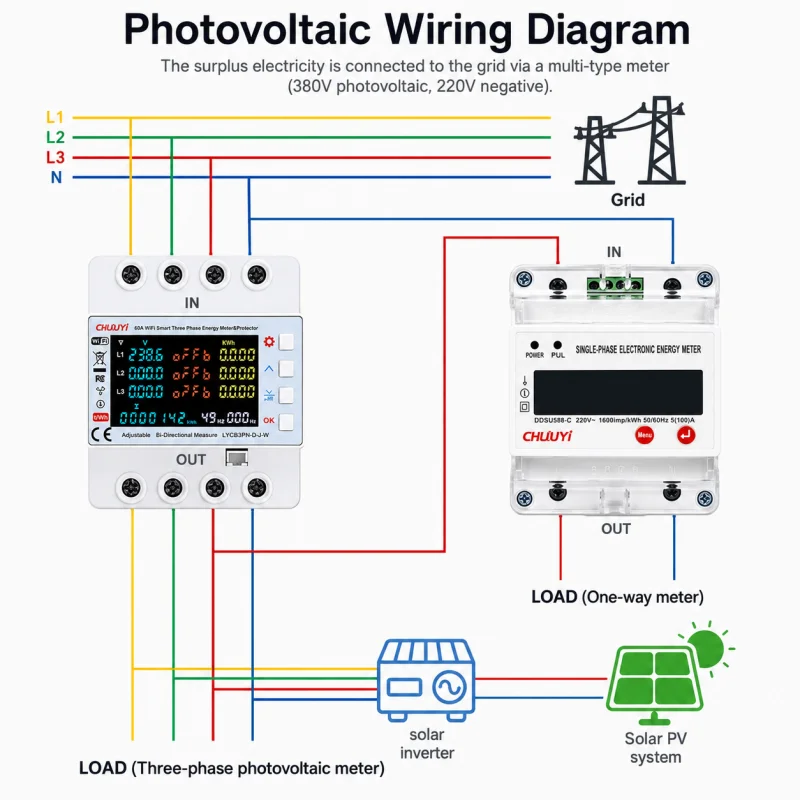

Solar energy system owners utilize the three phase energy meter protector for accurate net metering. The smart device records both imported energy from the traditional grid and exported energy generated by solar panels. Monitoring solar production metrics becomes seamless when using the electric monitoring unit to manage commercial or residential renewable setups.
FAQ
What are the primary protective functions of the Smart Three-Phase Energy Meter Protector?
The Smart Three-Phase Energy Meter Protector is designed to offer multi-level grid protection for both single-phase and three-phase circuits. The device monitors and automatically protects against over-voltage, under-voltage, over-current, under-current, current leakage, voltage imbalance, current imbalance, phase loss, phase sequence anomalies, and over-temperature conditions. Circuit protection action thresholds and the on/off status can be fully customized for each parameter.
Can the built-in 3 relays control three different single-phase loads independently?
Yes, absolutely.The device features a 3×1P single-phase load design with 3 built-in relays that offer completely independent phase control. If one phase experiences an electrical fault, the Smart Three-Phase Energy Meter Protector can isolate that specific phase without shutting down or interrupting the power supply to the remaining two active phases. It can also manage a standard 1×4P three-phase load.
How do I pair the Smart Three-Phase Energy Meter Protector with the smart application?
To connect the device to your smartphone, please follow these steps: Search for "Smart Life" or "Tuya Smart" in Google Play or the Apple App Store to install the application. Create an account, connect your smartphone to your local 2.4GHz Wi-Fi router, and tap "Add Device". Select "Switch Module (Wi-Fi)" under the "Energy" category. Long-press the Wi-Fi button on the device for 5 seconds until the Wi-Fi indicator light flashes quickly, then complete the pairing on your application.
What do the different flashing states of the Wi-Fi indicator light mean?
The Wi-Fi indicator light on the front panel communicates three distinct operating statuses: Fast Flashing: The protector is in pairing mode, actively searching for a Wi-Fi signal to connect to the application. Slow Flashing: The protector is in an offline state and has lost connection with your Wi-Fi router. Solid/Long Light: The protector is successfully connected to the Wi-Fi network and is operating normally with smart cloud sync.
Can the Smart Three-Phase Energy Meter Protector replace a traditional circuit breaker?
No, the device cannot completely replace a traditional circuit breaker. Although the Smart Three-Phase Energy Meter Protector provides advanced voltage, current, and leakage protection, it does not replace normal short-circuit protection. You must always install a standard miniature circuit breaker (such as DZ47 or C65) ahead of this device at the front end of your circuit line to ensure proper short-circuit safety.
Does this device support bidirectional energy monitoring, and where can I view the records?
Yes, the Smart Three-Phase Energy Meter Protector supports bidirectional energy monitoring, making it perfect for solar power systems or smart grids where energy flows both import and export. You can monitor the real-time bidirectional power metrics directly on the device's LCD screen or track detailed historical data and fault records anytime via the Tuya/Smart Life application.

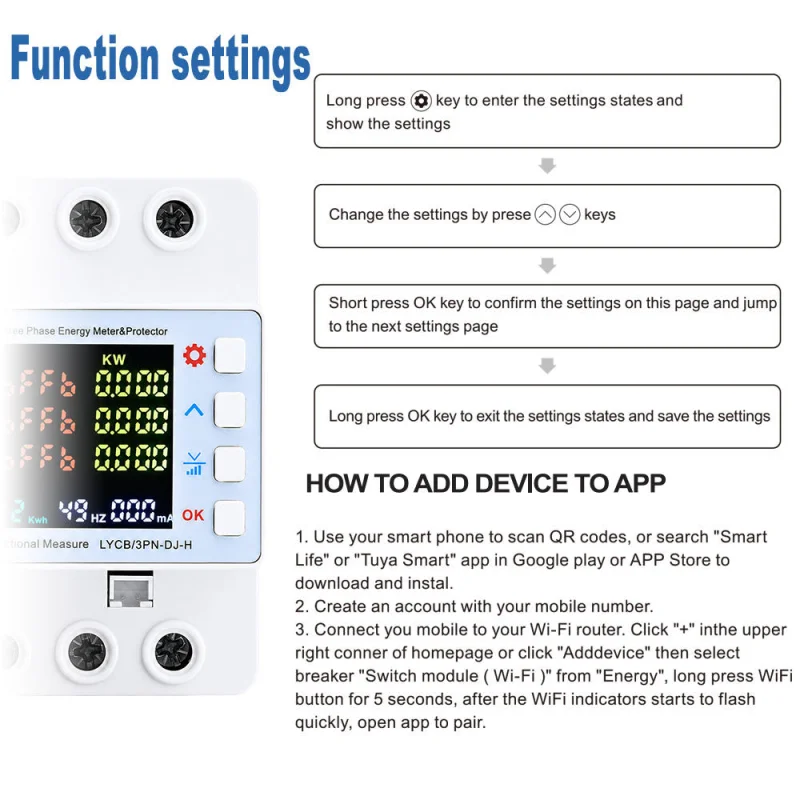

How do I manually adjust the protection thresholds and parameter settings on the device?
To configure settings directly on the device panel: 1.Long-press the settings key to enter the configuration interface. The data bit that can be modified will begin to flash. 2.Press the Up/Down arrow keys to adjust the numerical value or change the function on/off status. 3.Short-press the "OK" key to confirm the current page's settings and jump to the next parameter setting page. 4.Long-press the "OK" key to save your parameters and exit the settings state.
What are the default factory values for over-voltage, under-voltage, and over-current protection?
The pre-configured factory default settings are optimized for standard grid conditions: Over-voltage threshold: 270V (Setting range: 60V–300V) Under-voltage threshold: 170V (Setting range: 60V–300V / 80V–210V) Over-current threshold: 80A (Setting range: 1A–100A) Recloser recovery time: 20 seconds (Default delay before attempting automatic reconnection after a fault clears).
